Inexpensive Plank Wall How To

20 Comments



The half bath.. there are a LOT of layers ANNND… here is another one.  Believe it or not, I was a bit ahead of the curve and I started a plank wall two and a half years ago… Unfortunately for me, it took me that long to finish the project, not because it is hard, but because I ran out of planks, and then I just got bored with the project!  ( I think it is a sickness for me… boredom well, that and remodeling!)



In our first house we did the same plank wall look, and I LOVED it.  So I guess I just copied myself… should I be flattered?  Maybe I should pat myself on the back.  I guess the truth of the matter is, we finished that project only a few months before we left so I felt like I should have enjoyed it more.  I chose not to do any wainscoting on my second house intentionally, but when we moved into the third, my love for wainscoting burst right back out of me and so that is what we did in the living room and the half bath…

Because our front room also has wainscoting, I didn’t want it to be exactly the same.   So I thought the panel thing would be an interesting change.

IMG_6769



Inexpensive Plank Wall How To



Supplies:

1/8” Masonite 4’ x 8’  board cut into 4” x 8’ strips (there will be a piece that is less than 4” at the end, you can use that under the base molding, which is what we did)

Construction Adhesive



Tools:

Sanding Block for Edges

Brad Nailer

Tile Spacers 1/8” or 1/16” inch is perfect!



1. Be sure your walls are clean, prepped and ready to install the paneling.  I would carefully remove any existing baseboards/ or trim pieces and replace them on top of the paneling to give you the most finished look.



2. To begin, cut your 1/8th inch Masonite on the tables saw into 4” strips.  To make it more manageable, we cut ours into 3- 16 inch strips, but this will add to the waste if you don’t account for the thickness of the table saw blade in your cut.



3. In the room that you are installing paneling on, find your registration line.  With a laser level, and mark all the way around the room.  I lined up the bottom row with this line around the room,

1



4. Carefully attach the first row in place using a bead of construction adhesive on the back of the board ( I usually do a squiggly “S” line along the back) and use a brad nailer to secure the board in place while  the glue dries.  I would do this around the room to begin.



2



5. For the second row, add glue to the back of the board, carefully eyeball the location.  Place it on the wall, stick the tile spacers in the gap you are creating between rows, and level out the board.  Then nail in place to hold it.  Continue in the same way all the way up the wall.  Be sure to stagger end joints(as you can see above, I did 1/3’s of the length of the first first board) through out to keep it looking right. (you can see that my tile spacers are sideways… I just used what I had on it’s side….)



3

6.  Keep the corners tight and clean like above



Okay  this is where we got a little crazy.  In our half bath the previous owner plastered over a wallpaper border… instead of removing it.

IMG_4556 copy

Which meant it looked awful!  I cant stand the texture on the walls anyway, so I decided to cover the top portion with a sheet of Masonite just to smooth out the wall.  This is not necessary, we just wanted to do it.

IMG_4525

In the picture below you can see the painted vrs unpainted planks.… the painted wall is what I got done the first time 2 1/2 years ago…. the brown is what I did not get done… oh man, that is embarrassing.  Obviously I am extremely tolerant of unfinished projects.

planking half bath walls copy



Okay, so you will have to forgive all the picture I took from the porcelain throne.  This is what the room looked like, you can see how it would feel if the room were dark… sort of confining.  There are still a few spots that need planking (above the mirror and door)

planking half bath walls2

Ah… while these pictures look a little blown out, I am already loving the white!  Painting the planks took a LONG time, I cannot tell a lie.  It was a pain the the patootie!   I used a brush to fill the cracks and had to be REALLY careful about drips, then I immediately rolled it smooth with a foam roller to avoid paint brush lines… and I did that about 3 times, and probably needed to do it one more time.



I decide to add a color to this bathroom in the form of a light blue/green.  I was really happy with how it felt once I got it painted. It was custom mixed because I didn’t like it the first time ( I used the same color on my family room ceiling!)  Here is the color tag from Home Depot.



IMG_7245

planking half bath walls3

Okay so above the door and mirror it was blank… I thought it would be a good idea to throw some planking above them for interest, and at the same time we changed out the light.  We used a simple $30. fixture from HD.

planking half bath walls4



Once all the planking was up and primed, I painted the wall above the wainscoting, then I started painting the molding, that we were putting all around the small space.

IMG_4592



IMG_4558



Here is the before: unfinished corners everywhere… So we began, with painted 1 x 4;s to wrap each edge of the wall, corner and the ceiling.  (sorry about the color discrepancies… these were taken all over in time of day and amount of light…)



planking half bath walls5

IMG_4653

So, we had a piece on the wall and a piece on the ceiling. Then Justin installed the door casing/molding which we took from floor to ceiling, and the mirror trim (I’ll explain more about that below), then the base molding and finally the cap for the wainscoting.  Then when those were all in, he installed the corner moldings.  (there is nothing like trash all over the place in pictures…)

IMG_4640



For the mirror, we did a little extra work. We needed a few spacers (hence the unpainted Masonite in the picture below) when the wall was ready to install the molding, we put the bottom horizontal piece below the mirror, then the 2 vertical pieces on the back wall from sink to ceiling.  Then we put the wainscoting top and cap on so that these pieces would be layered on TOP of the mirror wall molding.  Finally we added the other 4 pieces of corner molding above and below the wainscot cap.  ( I outlined the order in the image below)

The reason for all the extra work is that we wanted the cap or ledge piece of the wainscoting to be layered on top.  We also decided to build in a frame to install after the molding was installed because I don’t like how the “cap of the wainscoting overlaps the “mirror frame” see the picture below.

planking half bath walls6

One little detail that we always try to remember to do is round all butted edges.  I have found that no matter how well you fill and sand butted edges, they crack and look bad after only a short time.  So our compromise is making the edge intentional, and give it a detail, to keep the lines looking their best.  These rounded edges also match the corner edges of the MDF we installed, so it really makes sense.

IMG_4681

A LOT of patching and sanding later, we got a few final coats on the bathroom wall and were pretty much done with the space… all but the vanity and mirror, that and accessorizing.



planking half bath walls7

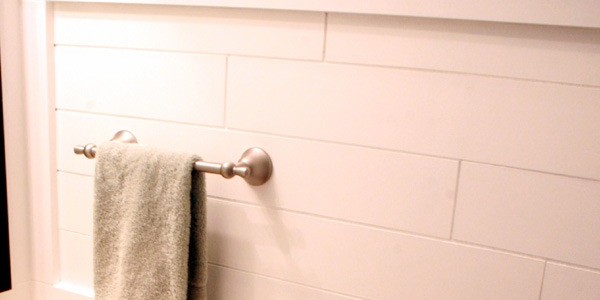

So in the end, what did the walls and moldings look like?  Something like this!  I will show you the rest tomorrow!

IMG_4691

IMG_4692



If you want to see the rest of this bathroom transformation… check out half bathroom before, installing a pocket door, the inlaid tile rug and installing the new faucet.
