Build A Swedish Mora Clock: Part Two

Okay, so you have seen the amazing Swedish clock reveal yesterday you saw part one and know how to start building the clock, I will show you how to finish cutting the moldings, sanding, painting and mounting the Swedish clock to the wall.

MY LATEST VIDEOS

So because of the size of the clock, in order to cut it properly, I had to cut it up into three parts.  This made it a lot easier the handle with the band saw.  Each part weighs about 20 to 30 lbs because of the 2×6’s.  The diagram below illustrates where I decided to make the cuts.  I chose areas that would be easy to cover up with the molding and hide the joints.  Dividing it up into parts also helped with shaping the sides around the molding ends too

So at this point you need to cut the clock into three parts.  I used the reciprocating saw here to cut through the 4” of wood.  It was the best tool because of the long blade options it has.

*Tip* Make sure to keep the blade perpendicular to the cut as much as you can.  The blade tends to twist when cutting on a curve.

Once the three parts are divided, you can start your final cuts with the band saw, leaving 1/16″ of an inch for sanding after.   Before cutting, first make some relief cuts for cutting out curves.  *A relief cut is made perpendicular to the cut edge, but not past the pattern line!  They allow the wood to break away and relieve tension on the blade as you turn the wood around a cut. Leave about a 1/16” to an 1/8” of wood from the pattern line.  This amount will be sanded down once all the profile cutting is done.

relief cutting

profile cutting

After I cut out part three, notice that I needed to reinforce the top with a spacer block between the two sides.  I added the block with glue and pocket hole screws to hold it tight.

Now I was able to start finish sanding with my hand held belt sander.  This thing is awesome.  It proved to be the best and fastest way to sand away the rough band saw blade marks.  I used a 60 grit belt to sand it down fast.

*Tip*  Be careful not to apply too much pressure though, It will sand too much too fast.  Use little pressure and let the sander do the work.

Use a drill bit sander for the tighter curves.

Once all the profile edges are sanded and smooth, start cutting out the moldings.  Use the same pattern used for the clock and trace out just the molding portions.  Use the jig saw to cut it out.  If you have a bit made for curves you can go right around the ends with no problem.  It will taper the edge a bit.  Just keep that in mind when cutting on a curve.

Because the moldings are small and awkward, I screwed them to a jig that would hold them in the wood clamp while routing the edges.  I made the jig by cutting out a shape smaller than the original size, so it didn’t get in the way of the router bit while cutting.  I screwed that to a board that would be held in the clamp.  Clamp it in place and route the edges by holding the router in hand.  I decided to hold the router by hand to have more control and visibility while cutting.

Glue and clamp the molding in place.  Now with it in place you can do final sanding on the edges.  I did hang over the molding about 1/16”, to hide the seam of the part above it.

Here is the faux pendulum hole molding, all cut out and ready for the edges to be routed.

After routing the interior hole edges first, I added a block in the middle to give the router a place to sit on while routing the outer edge.  This made it more stable for routing.  You can see that there are burn marks on the routed edges.  That is from a dull bit.  It won’t happen as much if it’s new and sharp.  All you need to do is sand off the burn marks.

You can also add a base molding on the bottom of the clock to give it more interest.  Use a 1×4 and just routed the top edge to match the rest of the moldings.  Miter the corners and nail it in place.

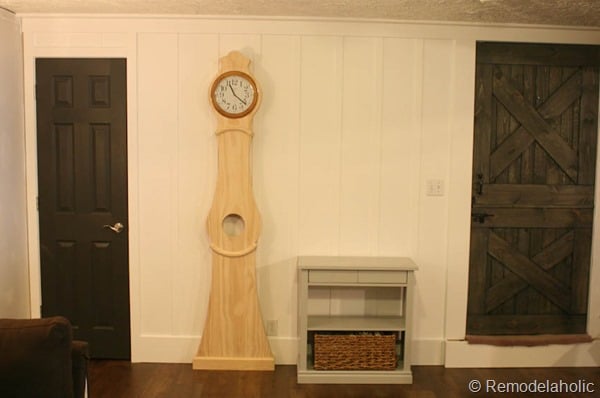

Here is a picture testing to see how the clock was going to look in the space.  We wanted to make sure that the size felt okay.

Now that all the sanding is done, you can start to apply the color to the wood.   Here is Cassity starting to paint the clock yellow with the paint color by Sherwin Williams, Pro Classic, Satin paint in #6910 Daisy.

Cassity wanted to be able to see the wood grain, so she just washed the clock with paint instead of applying 2-3 coats of paint.  She brushed on the paint and then removed an excess by rolling it with a dry foam roller, this also removed the brush marks.

With all the pieces painted now is time to assemble it all together and attach the hardware to secure it to the wall.  Use some scrap wood and screw it to the back in between part one and part two.  This will link the two pieces together nice and tight.  If you align it to one side, it will align the two parts together.  At the top of part two screw on a piece and let the top extend out about 3-4 inches.

On the back of part one you will create a slot opening for the tongue of part three to fit into.  Also, notch out a place for two L-Brackets, so that part three sits on top of part two without seeing a gap.

Attach two L-Brackets to the top of part two (the middle section).  Then anchor the clock to the wall.

With the clock anchored to the wall, the top of the clock (part three) will just slide on top and stay in place without falling off.  This way you can easily remove the top of the Swedish Mora clock and change out the batteries when needed.

Here is how the base molding turned out and the additional support that was added behind on the base.

This is how it looks in its place in our living room.  This was a fun project to take on and build.  It was my first clock project.  I feel that it turned out nice.  I find myself just staring at the wall at times, now that there are some nice things to look at.

I hope that you take the chance to build your own Swedish Mora clock, for you to enjoy in your home.  It was less than $75 to build in case you were wondering.  Very affordable if you have the tools and time.

Let us know how it turned out if you build one.  Don’t forget our other project plans that we have made for you.
