Fishbone Chair Project Plans and Tutorial
Upcycle us is what comes to my mind when I look at the full recycling bins before trash pick up.
Upcycle us is also a blog featuring upcycled items from the same trash pick up. The items you will see are highly influenced by designers who use minimalist designs and concepts, such as making an Ipad holder from chopsticks or a chair and trunks from shipping pallets. Because upcycling is a long process, Upcycle us also features projects made by others.
The fishbone chair is the most sophisticated project of my blog in terms of work and design and it’s using a bit more than one 4X8 piece of plywood. I salvaged this wood after finishing my basement.
So far and as I said: “It is totally inspired from the creation of the designer Nicolas Marzouanlian that cost around $1600. The chair is so creative and simple (and because I can not afford to spend this amount of money on such a beautiful hand-made chair), I decided to give it a try and made my own.”
How to make it:
The main hurdle was to make the chair from a single picture available online. When I first saw the picture, I liked it so much that I started making the chair the day after. This chair does not need nail or screws not even glue, the assembly is based on the same principle as the 3D wood kit puzzle that creates dinosaur skeletons.
First, I made a miniature out of cardboard, it helped me to realize practical details such as making notches really accurately and at a precise distance from each other, because wood won’t stretch as easily as cardboard.
I had to decide the shape and size of the 3 main components: the croissant shape, the spine and the legs.
This is the shape and size of all the pieces needed :

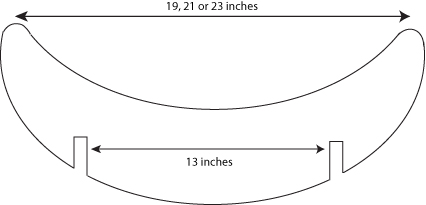

“The croissant shape”:
14 croissants will be 23 inches wide, 2 of them will be 21 inches and 2 will be 19 inches (the first and the last). A total of 18 croissant shapes.

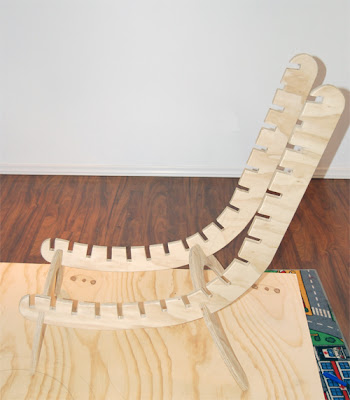

“The Spine”:

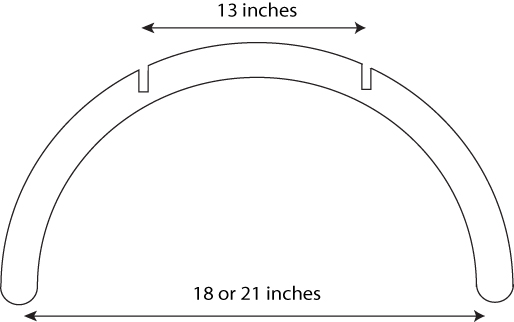

The legs:
To cut all the shapes you’ll need a little bit more than one 4X8 3/4 inches plywood. For the cutting, I used a jigsaw with a blade that cut precisely and does not damage the plywood (Precision Cut from Bosh are pretty good).
An optional step is to smooth all the edges using either sand paper or for the lazy one, a router. Even if it’s optional, it’s highly recommended.

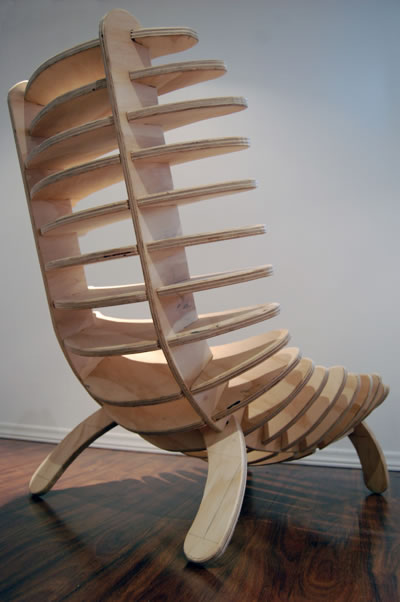

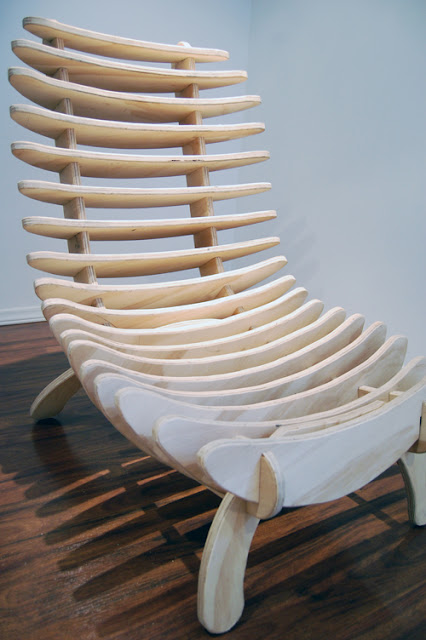

Once the cutting is done, this is what you should get. A chair that is much comfortable that it looks, my friends are always surprise to see how sturdy and comfy this chair can be. Space between each croissant is 2.5 inches, you could also reduce this space to 2 inches to improve the seating experience but it involves making more shapes and the design might be affected too. If you give it a try, we’d like to see it!
