How to Build a Corner Bench with Built-in Table
by Christine from Pinspired to DIY

Click Here to Get a Free Printable Version of This Building Plan

*All Remodelaholic building plans and tutorials are for personal, non-commercial use only. Use this printable plan as you build, but don’t sell the PDF plan or otherwise distribute the file. (Items built following this tutorial may be sold, but the instructions and PDF file may not.) Thanks!

Hi! I’m Christine from the Pinspiration Mommy blog. I’m a full-time working mom and wife who loves to build, craft, and create in my limited spare time. I also love working with Hubs to remodel our home room by room and I love planning theme parties for my daughter and other family members. I enjoy sharing all my creations on my blog (in addition to this project, my favorites are our outdoor dining table and DIY firewood rack.)

Woodworking is probably my favorite spare time activity and I love creating new furniture and décor for my home. I got started with woodworking a little later in life (I was 38!). For most of my life I considered myself to be completely uncrafty and NEVER thought I’d do something like building my own furniture. But then, along came Pinterest and the rest is history! Pinterest introduced me to this blog and a few others where I saw amazing women building gorgeous furniture projects and sharing their passion with others, and for free! I was inspired to give it a try and now I’m hooked! I started out just following tutorials created by others, but now I am creating and sharing my own furniture creations and hope to inspire others to give it a try! Here is one of my favorite projects, my DIY Corner Bench with a Built-In Table:

diy corner bench with built-in end table, Pinspiration Mommy featured on @Remodelaholic

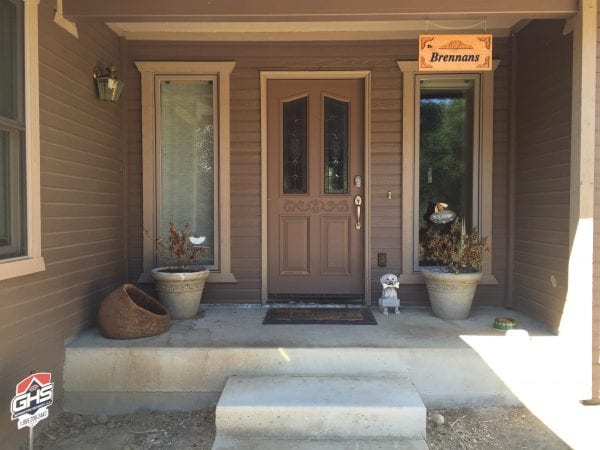

My front porch has been in serious need of a makeover, it was looking pretty sad! I had plants on my front porch that I always forgot to water so they were no longer amongst the living. Here is a pic of my sad front porch:

before the corner bench

Now that summer is officially here, I figured that it’s the perfect time to start a makeover for my front porch. I had been wanting some seating on my porch as well as a table to display decorations, so, I decided to create a bench to fit in one of the corners of the porch with a built-in table for displaying decor. Here’s what I came up with:

front porch DIY corner bench, Pinspiration Mommy featured on @Remodelaholic

diy corner bench and table for front porch, Pinspiration Mommy featured on @Remodelaholic

perfect porch bench, a corner bench with attached table, Pinspiration Mommy featured on @Remodelaholic

Here are the plans for the corner bench with the built-in table:

This post contains affiliate links. See our full disclosure policy here.

Material List:

  • 2 – 2×6 @ 8 ft
  • 7 – 2×4 @ 8 ft
  • 1 – 2×2 @ 6 ft
  • 2 1/2″ exterior wood screws
  • 2 1/2″ pocket hole screws
  • Kreg jig
  • wood glue

Cut List:

  • 2 – 2×4 @ 40″ (frame)
  • 2 – 2×4 @ 26 3/4″ with one end of each cut at 45 degree angle (frame)
  • 6 – 2×4 @ 26 1/2″ (bench seat top)
  • 9 – 2×4 @ 16″ (legs)
  • 4 – 2×4 @ 15″ (table top)
  • 4 – 2×4 @ 8″ (table top)
  • 1 – 2×4 @ 1 1/4″ x 1 1/4″ (table top)
  • 2 – 2×6 @ 26 1/2″ (bench seat top)
  • 2 – 2×6 @ 15 1/4″ with one end of each cut at 45 degree angle (table box)
  • 2 – 2×6 @ 13 3/4″ with one end of each cut at 45 degree angle (table box)
  • 2 – 2×6 @ 12 1/4″ (table box)
  • 4 – 2×2 @ 18″ (table top)

First, start off by building the frame for the bench. Make the following cuts:

  • 2 – 2×4 @ 40″ with one end of each cut at a 45 degree angle
  • 2 – 2×4 @ 26 3/4″ with one end of each cut at a 45 degrees
  • 6 – 2×4 @ 12 1/4″

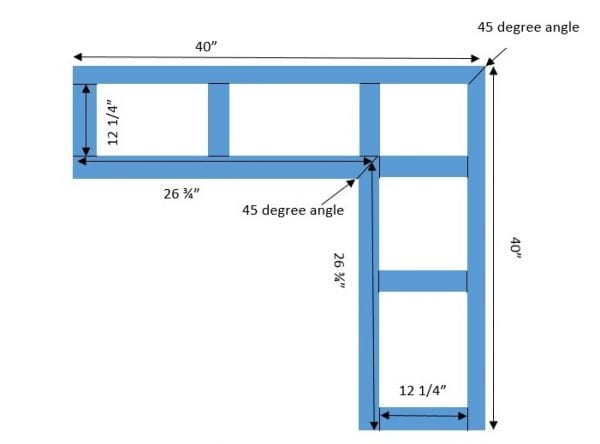

Drill two pocket holes into the ends of each 12 1/4″ board, and use wood glue and 2 1/2″ pocket hole screws and 2 1/2 exterior wood screws to assemble the frame using the diagram below:

how to build a corner bench with built-in table, Pinspiration Mommy featured on @Remodelaholic 01
corner bench frame plan

And here’s an actual picture of the completed frame:

Frame for DIY Corner Bench with table
Frame for DIY Corner Bench with table

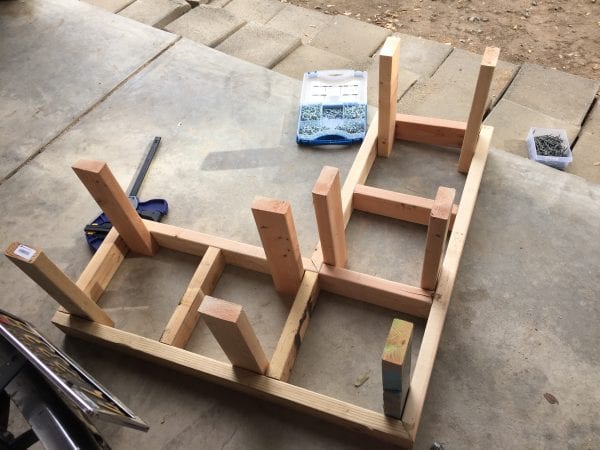

Next, cut the legs for the bench. Cut nine 2x4s at 16″ each. Using wood glue and exterior wood screws, attach the legs to the inside of the frame (predrill holes to prevent wood from cracking).

Attach legs to inside of frame using 2 1/2 wood screws and wood glue
Attach legs to inside of frame using 2 1/2 wood screws and wood glue

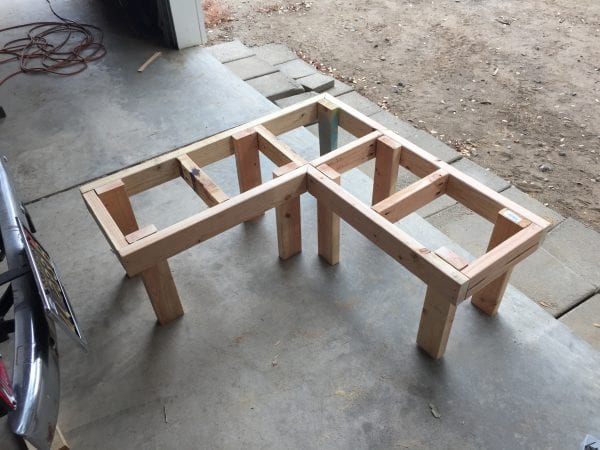

DIY Corner Bench frame with legs attached
DIY Corner Bench frame with legs attached

Next, build the box for the corner table. Cut the following pieces of wood:

  • 2 – 2×6 @ 15 1/4″ with one end of each cut at 45 degree angle
  • 2 – 2×6 @ 13 3/4″ with one end of each cut at a 45 degree angle
  • 2 – 2×6 @ 12 1/4″

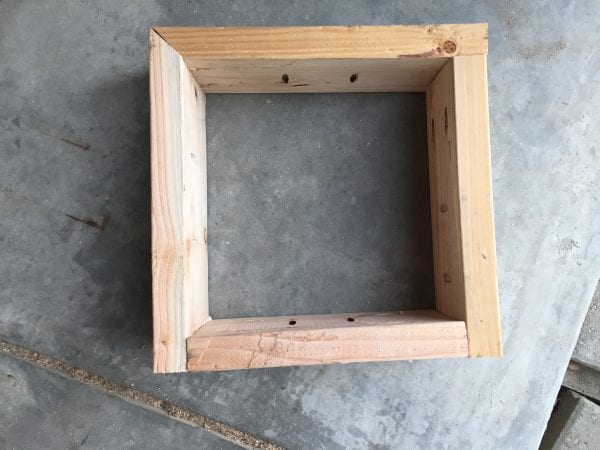

Drill two pocket holes into each end of the two 15 1/4″ boards. In addition, drill two pocket holes into the side of each of the four boards that assemble to form the box. Using 2 1/2″ pocket hole screws and wood glue, attach the four boards that make up the box (make sure the pocket holes in the side of each board are facing in the same direction (these will be used to attach the box to the frame).

Assemble box for corner table of bench
Assemble box for corner table of bench

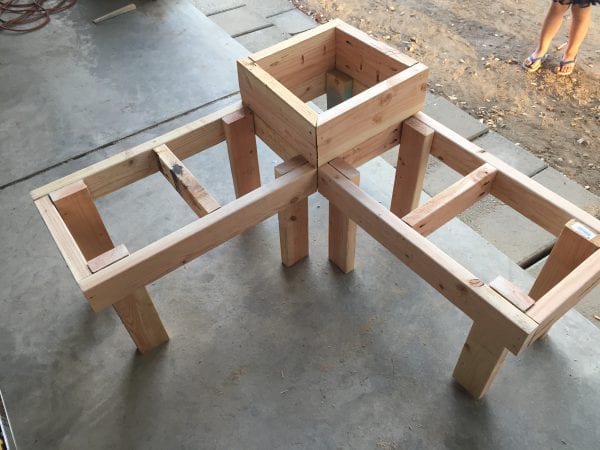

Using wood glue and 2 1/2 pocket hole screws, attach the table box to the boards making up the corner of the frame.

Attach table box with wood glue and 2 1/2" pocket hole screws
Attach table box with wood glue and 2 1/2″ pocket hole screws

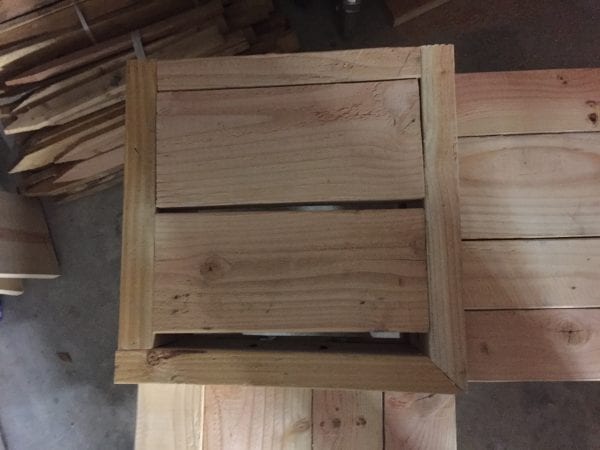

Drill two pocket holes into the ends of each of the two 12 1/4″ 2×6 boards you cut. Flip the bench upside down, and using wood glue and 2 1/2 pocket hole screws, attach these boards to the inside top of the table box.

Attach table box with wood glue and 2 1/2" pocket hole screws
Attach table box with wood glue and 2 1/2″ pocket hole screws

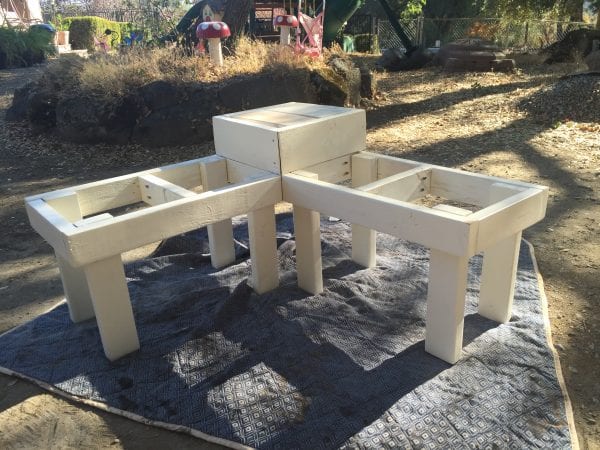

At this point, I sanded the portions of the bench already built and then painted it white using Rustoleum Heirloom White spray paint. (First I sprayed white primer, and then two coats of paint).

Corner bench frame painted white
Corner bench frame painted white

While the frame and table box were drying, I cut the boards to make the top of the bench seats:

  • 6 – 2×4 @ 26 1/2″
  • 2 – 2×6 @ 26 1/2″

Drill three pocket holes into one side of each 2×6 board, and into one side of all but 2 of the 2×4 boards. Using wood glue and 2 1/2″ pocket hole screws, attach three 2x4s and one 2×6 together to make two bench seats. See pattern here:

Bench top plans
Bench top plans



I then cut the boards for the table top and assembled those:

  • 4 – 2×4 @ 15″ with each end cut at a 45 degree angle
  • 4 – 2×4 @ 8″ with each end cut at a 45 degree angle
  • 1 – 2×4 @ 1 1/4″ x 1 1/4″
  • 4 – 2×2 @ 18″ with each end cut at a 45 degree angle



Drill pocket holes into one side of all boards except the 1 1/4″ x 1 1/4″ board. Using wood glue and 2 1/2″ pocket hole screws, attach the boards into the following pattern (the 1 1/4″ x 1 1/4″ board can be glued into the center once the other boards are assembled.

Corner bench table top plans
Corner bench table top plans

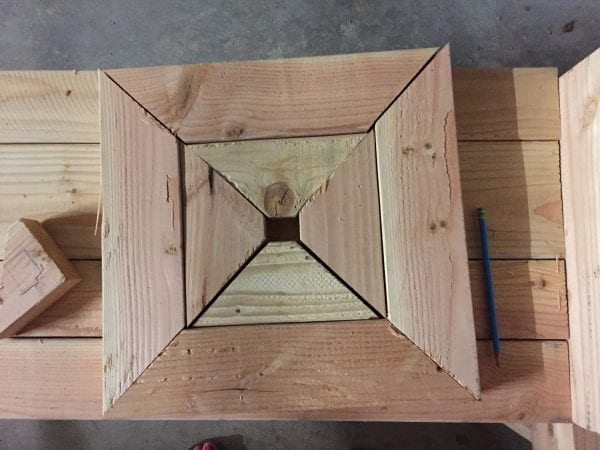

Here is a pic of the table top in progress of being built:

Table top in progress
Table top in progress

Once I completed the table top, I sanded the two bench tops and the table top and then stained them with Minwax Dark Walnut stain. I then used wood glue and 2 1/2″ exterior wood screws to attach the bench tops to the frame (predrill holes first). I attached the table top with wood glue and 2 1/2″ exterior wood screws from underneath the table box (drill through the 2×6 boards at the top of the table frame into the bottom of the table top).

Once the bench top and table top were attached, I filled all holes with wood filler. Once that was dry, I lightly sanded the filled holes on the top of the benches and then touched up the stain. Lastly, I applied 3 coats of exterior polyurethane varnish in satin finish and once dry, I put it in its intended location on my front porch and I am loving it! Here are some more pics:

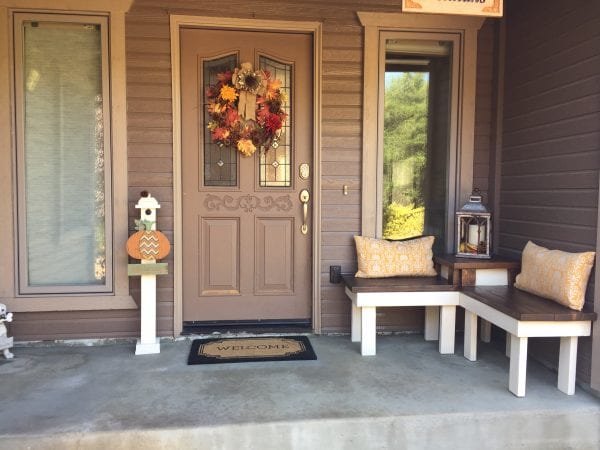

front porch with DIY corner bench, Pinspiration Mommy featured on @Remodelaholic

build a corner bench with built-in end table for a porch or patio, Pinspiration Mommy featured on @Remodelaholic

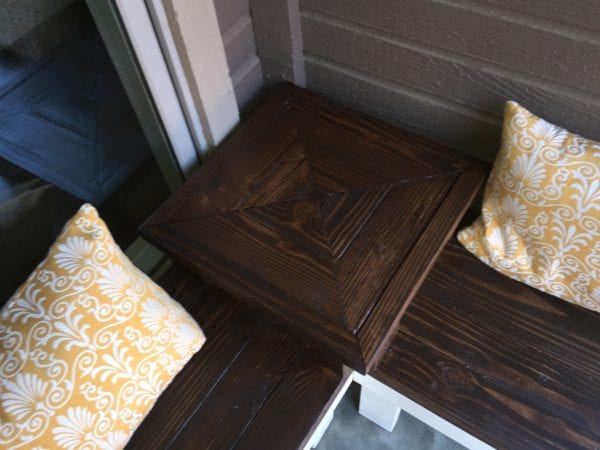

built-in end table on a corner bench DIY tutorial, Pinspiration Mommy featured on @Remodelaholic

To complete this project, it took me about 3 weekends (since I work full time during the week I don’t get much of a chance to work on large woodworking projects during that time). I purchased all materials at Home Depot or Lowe’s, but you can buy the supplies at most hardware stores if you aren’t near one of the big box home improvement stores. Please feel free to contact me if you have any questions!


Thanks so much for sharing, Christine! Remodelaholics, leave Christine a comment here and go visit her at Pinspiration Mommy to see more building, like this great raised planter and trellis combo

Pinspiration Mommy, DIY raised planter with trellis

Remodelaholic is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com. Please see our full disclosure here.

Similar Posts

11 Comments

  1. I’m on the framing part of the corner bench and would like to know where you used the exterior wood screws at?

  2. The bench is great…but could you PLEASE tell me what color is the siding and the trim on the house. We are getting ready to build and I love the color of the house.

  3. We made this but used a fireside cherry stain to match our red mulch in the yard and because we have a long narrow porch we made it straight with 2 end tables. It’s awesome! Thank you!

  4. To anyone looking to try this, it is quite unstable. 2×4’s for legs with no cross support lends itself to lots of ‘wiggle’ when anyone sits on it and moves to grab their phone.

    I would also love to see how the author actually screwed in the legs with exterior screws. Once you place the first leg good luck getting the drill in to attach the second leg.

    Lastly, the cut list is incomplete and adds frustration. Make sure you read both cut lists and then make your own list. Note that the 45 degree cuts requested are vertical cuts, not ‘flat’ so to speak.

  5. I see you have varnished wood pieces over the white table box but I dont see anything in the instructions about them. Can you tell me what size you made them and how you attached them ?

  6. The cut list did not include the frames six 12 1/4″ so i did all the cuts ahead of time and as i go to make the frame I’m missing 6 pieces and have to go buy more wood….

  7. Don’t know have to download tutorial. Really a laymen…Stop 1. 2 pocket holes into the ends of each 12 1/4″boart? Is that the top end or the side end? also where are the wood screws used/ Diagram is unclear to me. Thanks

  8. How did you attach the legs? I can’t see anywhere exposing screw heads or even putty to hide them if that was done. Also how did you screw together the two shorter 45 degree cut boards that are below the table top? Those two corners seem to have me guessing if they were somehow bound with glue and pocket hole screws or … ? Thanks for the images and PDF!
