Hexagonal Moroccan Side Table Plans

Written by Cassity

  • Facebook
  • Twitter

That is a LONG title… but let me ‘splain.

I have some items on my pinterest boards that I have pinned because I want to try and make them… And I am not just talking about desserts or crockpot meals… One pin in particular are these fun little tables that I have been asking Justin to make for me.



48976714667197611_SZ6y266o_c_thumb1



In fact I have a few pins of these sweet little Moroccan side tables or hexagon tables… or the mix of the two Hexagonal Moroccan side tables. Click on the image for the source…



15129348717693390_HUVJ181K_c19 3_1286318574_ED_1107_Papachristidis_

249751265_mfzGpa9f_c5 1331429197_IMG_98578

Elle-Decor-2007-Laird-Residence-Bilh[1] IMG_74826

Moroccan-Table-After5 moroccan-table-apartmet-therapy6

moroccan-table_domino4 mortable9

mortable11 RUE_IMG_0154-Edit5

Picture-876 pink-moroccan-table-berman6 morrocan-side-table-One-Kigs-Lane_th



So imagine my surprise and delight when Young House Love found a Moroccan side table at a local thrift store… And look how cute it is …



morrocan-side-table-plans_thumb1

Image via Young House Love

Need a closer look.. so do I!

morracan-side-table-plans2_thumb8

It has great lines, and I love the scale… so that was it, I emailed Sherry and asked if I could make plans based on that table, she said yes… so here ya go!

–

 Moroccan Side Table Plans

Click Here to Get a Free Printable Version of this Building Plan
–



List of possible tools:

  • circular saw or table saw
  • jig saw
  • pencil
  • hammer or nail gun
  • Kreg Jig(this would be great under the top support to fasten the legs together to the top)
  • nail set
  • putty knife
  • sanding block
  • sand paper
  • paint supplies
  • –

    List of materials:

  • Wood of you choice.  (I personally would make this out of solid wood and stain it)
  • MDF if you want to paint it.
  • (~200) 1 1/2” finishing nails
  • Paint of your choice or stain of your choice
  • finishing nails or brads
  • wood glue
  • wood filler
  • moroccan side table plans pin button copy

    Notes:

  • The legs of the table can be made from a single piece or two pieces of solid wood.  For two, clamp them together and cut out 1/2 of the leg template (shown below).  Then glue and screw the upper center seam together from the back side with the kreg jig the pieces together at the top together in the middle.
  • The plans were designed for 3/4” thick wood, whether it be MDF of solid wood.
  • The material thickness may vary depending on lumber chosen, make adjustments to the plans as needed.
  • Below is the patternto cut for the legs.  Print this out at 400% from the original size and it will be the right size to transfer to the wood and then be cut out.free moroccan side table pattern

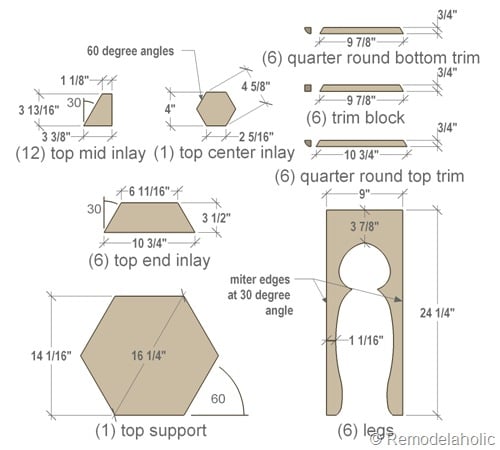

    Cut List:

  • (1) Top support – 16 1/4” hexagon (measured from corner to corner through the center)
  • (6) Table legs – 24 1/4” x 9” x 3/4”
  • (6) Trim block – 9 7/8” x 3/4” x 3/4”
  • (6) Quarter round bottom trim –9 7/8” x 3/4” x 3/4”
  • (6) Quarter round top trim – 10 3/4” x 3/4” x 3/4”
  • (1) Top center inlay –4 5/8” hexagon
  • (12) Top mid inlay– 3 13/16” x 3 3/8”
  • (6) Top end inlay –10 3/4” x 3 1/2” x 3/4”moroccan table cut list diagram

    Step-By-Step Instructions



    1. Cut the top supportinto a hexagon.

    free moroccan side table plans step 1

    2. Cut table legs to length and width.  Remember to miter the edges of the legs at a 30 degree angle on both sides.  These edges will be glued and nailed together to form the legs.  Print out the pattern and trace the design on the wood to be cut.  Cut with a jig saw and sand edges.

    free moroccan side table plans step 2

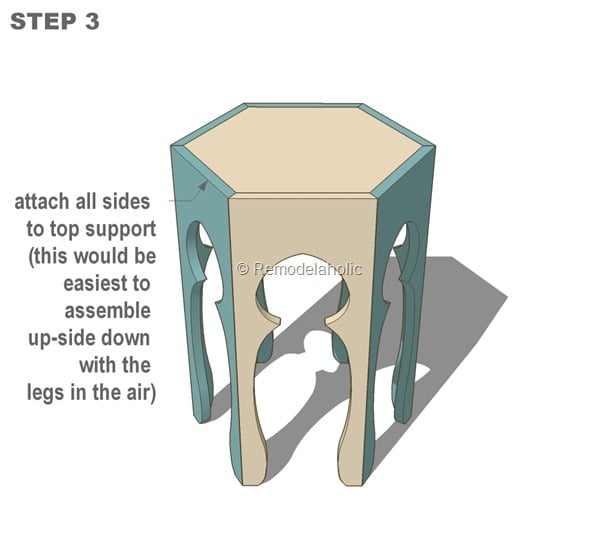

    3. Attach the other 5 sides together and to the top support.

    free moroccan side table plans step 3

    4. Attach trim blocksflush along the top edge of the legs.  This will provide a place for the quarter round trim to attach to.

    free moroccan side table plans step 4

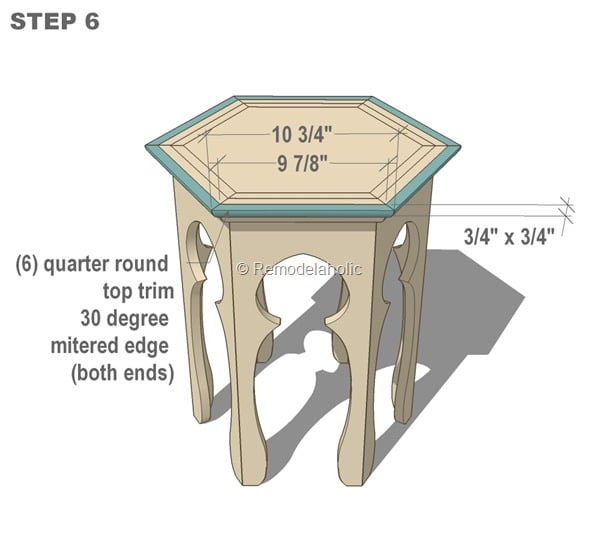

    5. Attach quarter round bottom trim to the underside of the trim block.free moroccan side table plans step 56. Attach quarter round top trimto the outside of the trim block flush with the top.



    free moroccan side table plans step 6

    7. Attach the top center inlaypiece in the exact middle of the table top support. Align all corners with each other.



    free moroccan side table plans step 7

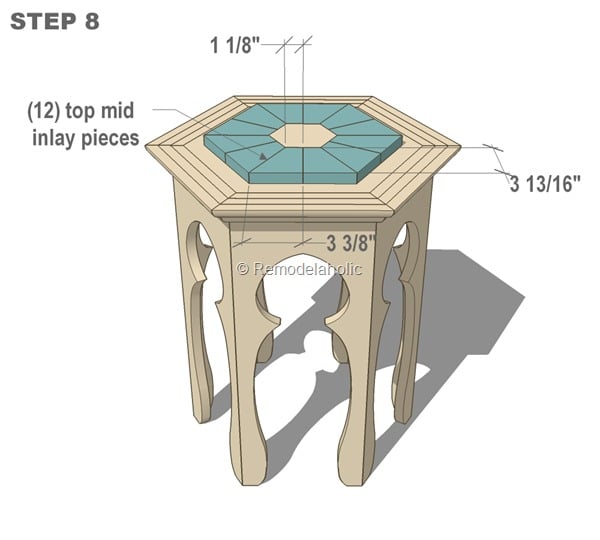

    8. Attach top mid inlaypieces, butted up against the center inlay.  Keep the pieces as exact as you can to the dimensions, so they all fit together properly .



    free moroccan side table plans step 8

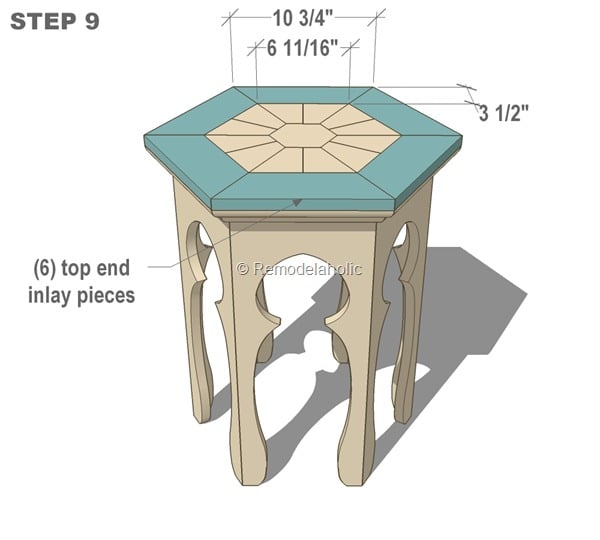

    9. Attach top end inlaypieces for the final top of the table.  Nail and glue the quarter round to the end pieces for added strength.

    free moroccan side table plans step 9

    Final view with overall dimension.



    free moroccan side table plans FINAL with dimensions







    Exploded View

    free moroccan side table plans exploded with dashed guides
