Glass Wall-Mounted Dry Erase Message Board Plan

Hi it’s Amy from Hertoolbelt, back again with another build plan.  Just in case you missed it, last week we built a simplified Orchard Ladder.  This week’s plan is inspired by this cute message board featured in Better Homes & Gardens.

Build a large glass dry erase board -- free plans on Remodelaholic.com #messageboard #organized #buildingplan
image via Better Homes and Gardens

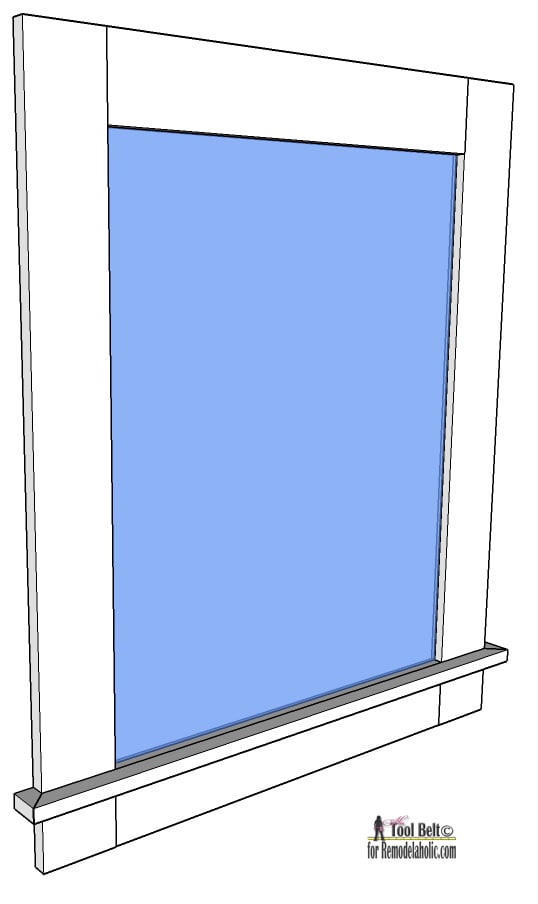

How to Build a Dry Erase Message Board

Click Here to Get a Free Printable Version of this Building Plan

The BHG message board boasts a large piece of glass to jot down messages and green paint on the back of the glass to coordinate with the rest of the kitchen area.  The outside frame looks it was made from the same molding as the door casing and includes a handy ledge to hold the dry erase markers.

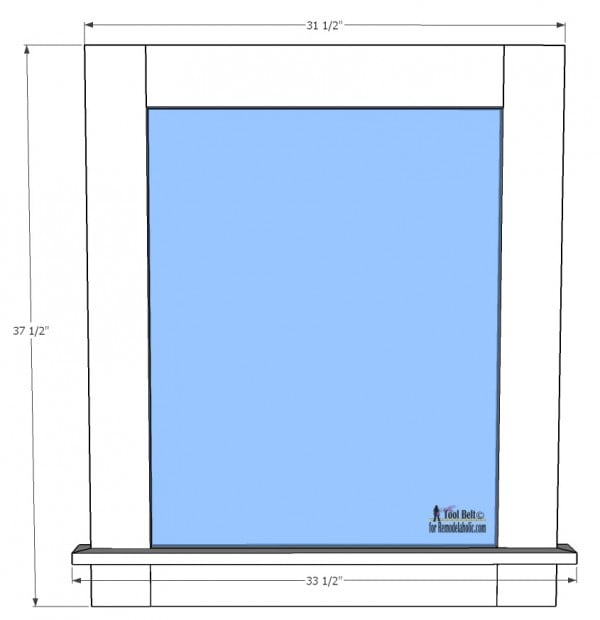

Our version will be very similar, just changed slightly to use readily available materials.  These are the overall dimensions of our glass message board:

Use glass for a perfect dry erase message board, and customize it with paint! Free DIY plans on Remodelaholic.com

Materials

  • 24″ x 30″ clear glass (available at Home Depot for about $10.38)
  • 24″ x 48″ x 3/4″ MDF (available at Home Depot for about $12.47)
  • wood glue
  • 8 – 1 1/4″ pocket screws
  • 1 1/2″ brad nails
  • sand paper
  • paint and primer

Cut List

Quantity Thickness Width Length Material
2 3/4″ 4″ 37 1/2″ MDF
2 3/4″ 4″ 23 1/2″ MDF
1 3/4″ 1″ 33 1/2″ MDF
2 3/4″ 1″ 1 3/4″ MDF

Step 1

Make sure the back of the glass is clean, dry and free of debris.  Paint the back of the glass if desired.  Spray paint or rolled on latex paint should work fine.  It might be fun to create a design or use a stencil to create a pattern.  Let the paint dry fully.

Step 2

Cut 2 pieces of 3/4″ MDF 4″ wide and 37 1/2″ long.  We need to cut a dado groove for the glass pane.  Start the dado 1/4″ from one of the sides.  Make the dado 1/4″ deep and about 3/32″ wide (or the thickness of the glass.)  Start and stop the dado a couple of inches from the ends.

Use glass for a perfect dry erase message board, and customize it with paint! Free DIY plans on Remodelaholic.com Use glass for a perfect dry erase message board, and customize it with paint! Free DIY plans on Remodelaholic.com

Step 3

Cut 2 pieces of 3/4″ MDF 4″ wide and 23 1/2″ long.  Cut another dado, start the dado 1/4″ from one of the sides.  Make the dado 1/4″ deep and about 3/32″ wide (or the thickness of the glass.)

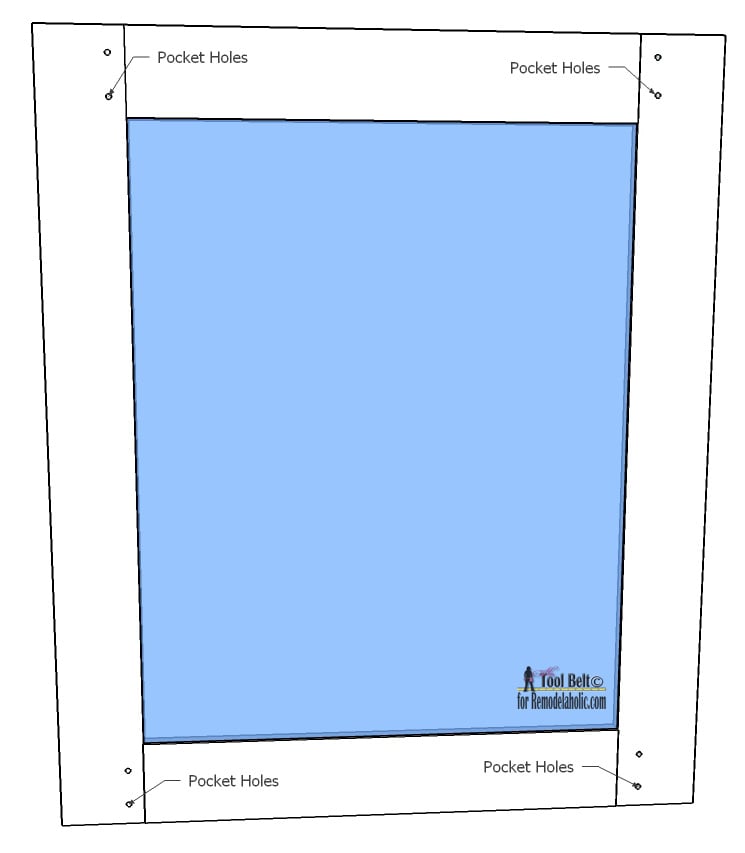

Dry fit the glass into the frame, make adjustments as necessary.  Make pocket holes in the tall frame sides.  Apply wood glue to the joints and screw the frame together with 1 1/4″ pocket screws.

Use glass for a perfect dry erase message board, and customize it with paint! Free DIY plans on Remodelaholic.com



Step 4

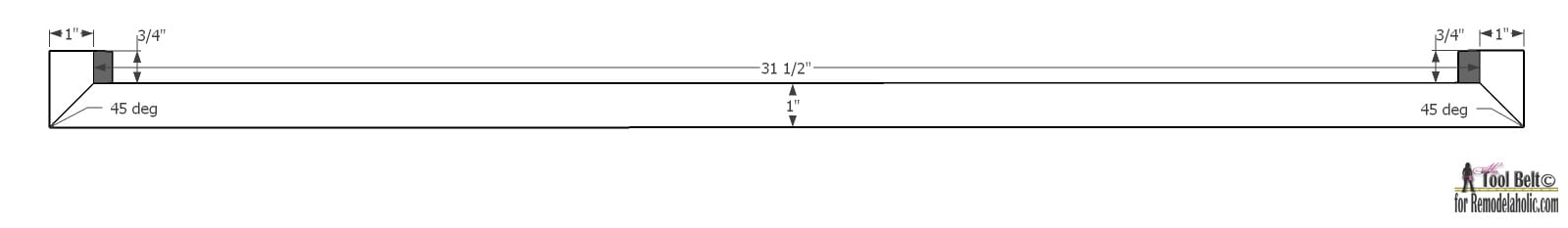

Cut the main ledge piece 3/4″ x 1″ x cut to fit width of frame.  Cut 45 deg angles on the ends.  Cut 2 ledge ends at 3/4″ x 1″ x 1 3/4″ with a 45 deg angle on one end of each.  Dry fit and make sure the ledge pieces will fit on the frame.  Make adjustments as necessary.

Use glass for a perfect dry erase message board, and customize it with paint! Free DIY plans on Remodelaholic.com

Step 5

Roll up a piece of sand paper on a marker or pencil.  Sand a slight groove into the top of the ledge for the markers to sit.

Use wood glue and brad nails and mount the ledge onto the frame.

Use glass for a perfect dry erase message board, and customize it with paint! Free DIY plans on Remodelaholic.comStep 6

Once all of the glue is dry, lightly sand the frame and ledge until smooth.  Remove dust and cover the glass.  Prime the MDF with paint primer.  Let the primer dry.  Paint the frame with your favorite color and allow to dry.  Add picture hangers to the back and your large glass message board is ready to be used.

If you want to build a large frame with a few more curves.  Check out my building plan and pattern for a giant bracket frame.

Enjoy your new message board!

Use glass for a perfect dry erase message board, and customize it with paint! Free DIY plans on Remodelaholic.com

———————————————

And now, use your message board to get organized!

Use it in a home office or homework station:

shared home office and homework station

or a family command center:

organized family command centers at Remodelaholic

or in your mudroom!

mudroom inspiration from Remodelaholic

Remodelaholic is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com. Please see our full disclosure here.

Similar Posts

3 Comments

  1. 2 options:
    -Make it deeper. paint a backboard, install strips of LED lights like you find in auto detailing section.
    OR
    -back the glass with sheet metal (painted) and make it magnetic. May need stronger magnets than normal.

    NOTE: I haven’t tried either one of these.

      1. Sandi,
        MDF is medium density fiberboard. It’s an inexpensive building material, somewhat similar to plywood, that you should be able to find at any home improvement store. Thanks!
